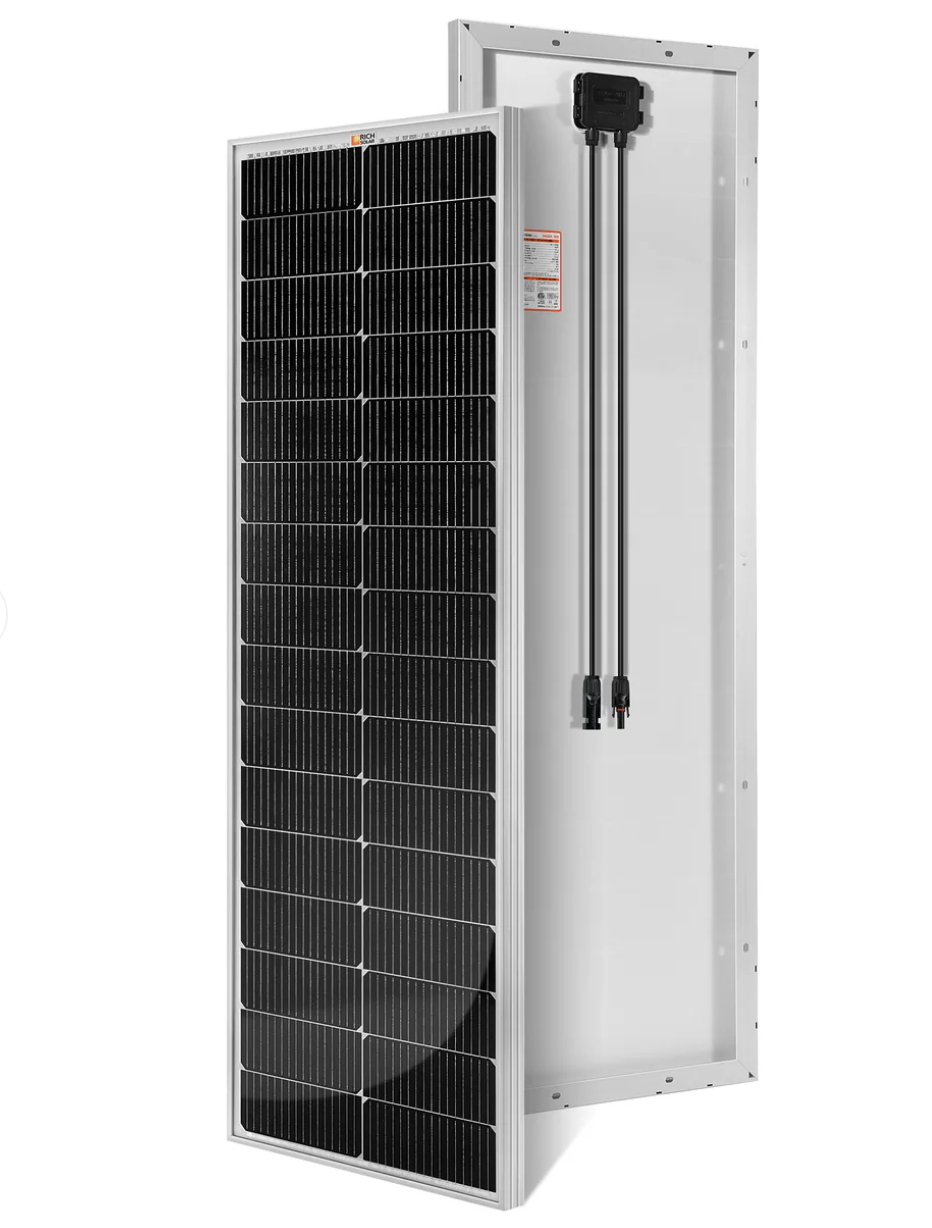

The MEGA 100 SLIM is an off-grid solar panel that is designed for the space-limited overlander. Featuring an aluminum anodized frame and tempered glass coupled with high-efficiency solar generation with 12V and 100W output, the MEGA 100 SLIM is perfect for vans, boats, and more.
Features
- 12V off-grid solar panel.
- 0~+5W guaranteed positive power output.
- IP 65 or IP 67 rated.
- Built with strong tempered glass and aluminum frame.
- Certified to withstand challenging environmental conditions.
- Excellent low-light performance on cloudy days, mornings and evenings.
Installation
- Easy installation and handling for various applications.
- Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
- Compatible with on-grid and off-grid inverters.
Warranty
- 25-year output warranty
- 10-year workmanship warranty
Built-in Components
- Panel Leads (Pair): 12AWG

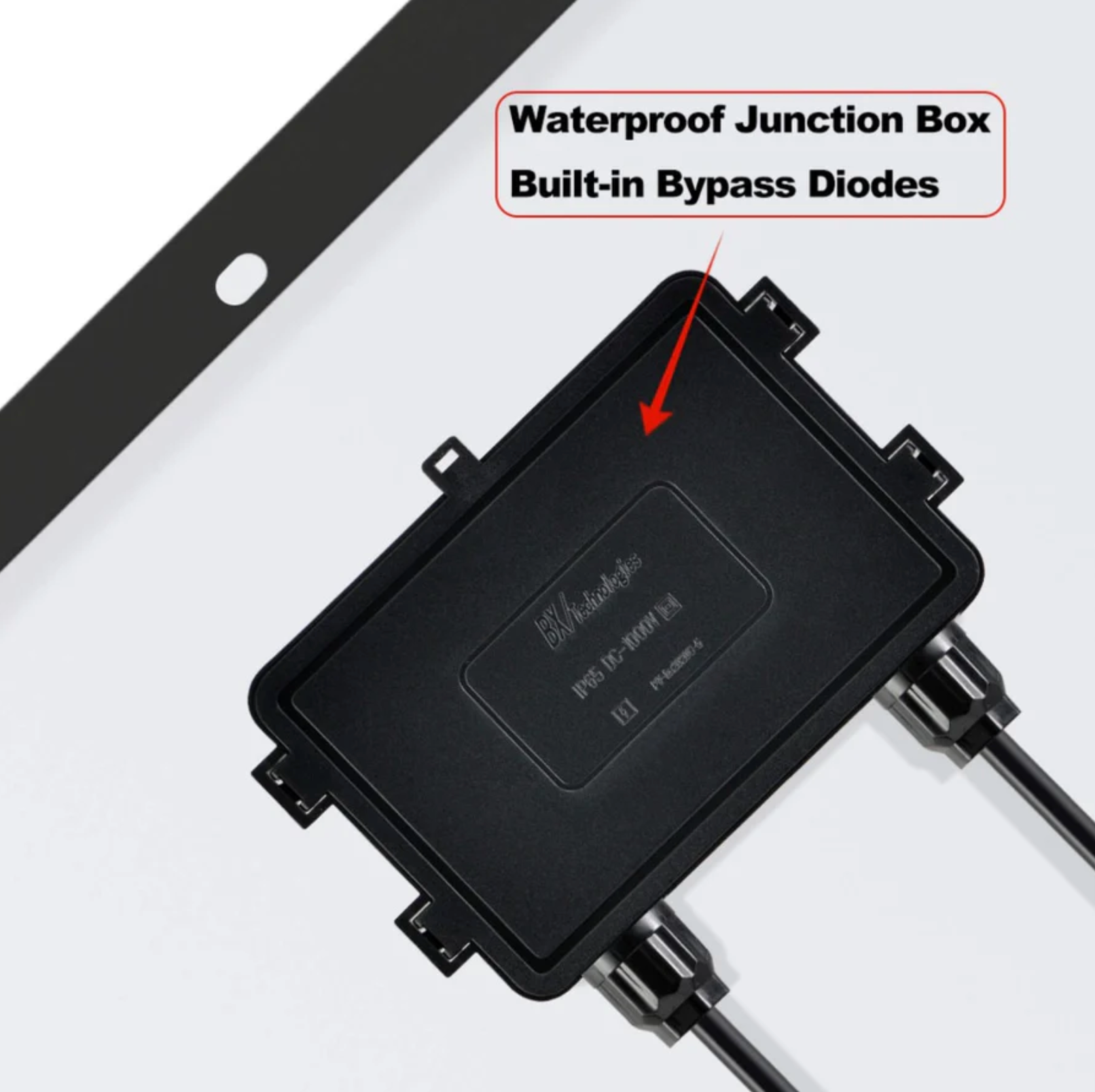

- IP65-rated waterproof junction box
- IP67-rated waterproof solar connectors

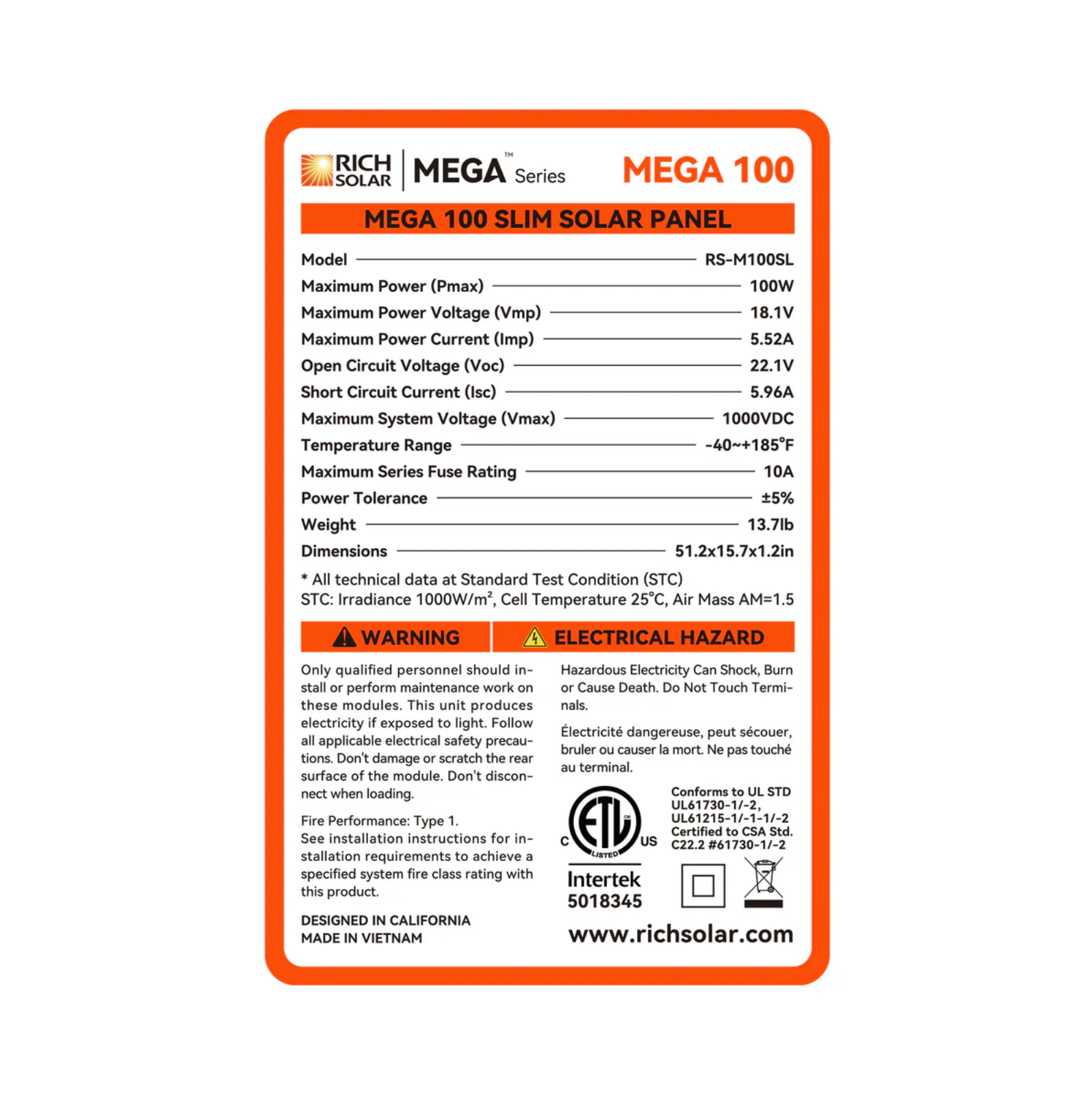

Specifications
- Maximum Power(Pmax): 100W
- Maximum Power Voltage(Vmp): 18.1V
- Maximum Power Current(Imp): 5.52A
- Open Circuit Voltage(Voc): 22.1V
- Short Circuit Current(Isc): 5.96A
- Maximum System Voltage(Vmax): 1000VDC
- Weight: 13.7b

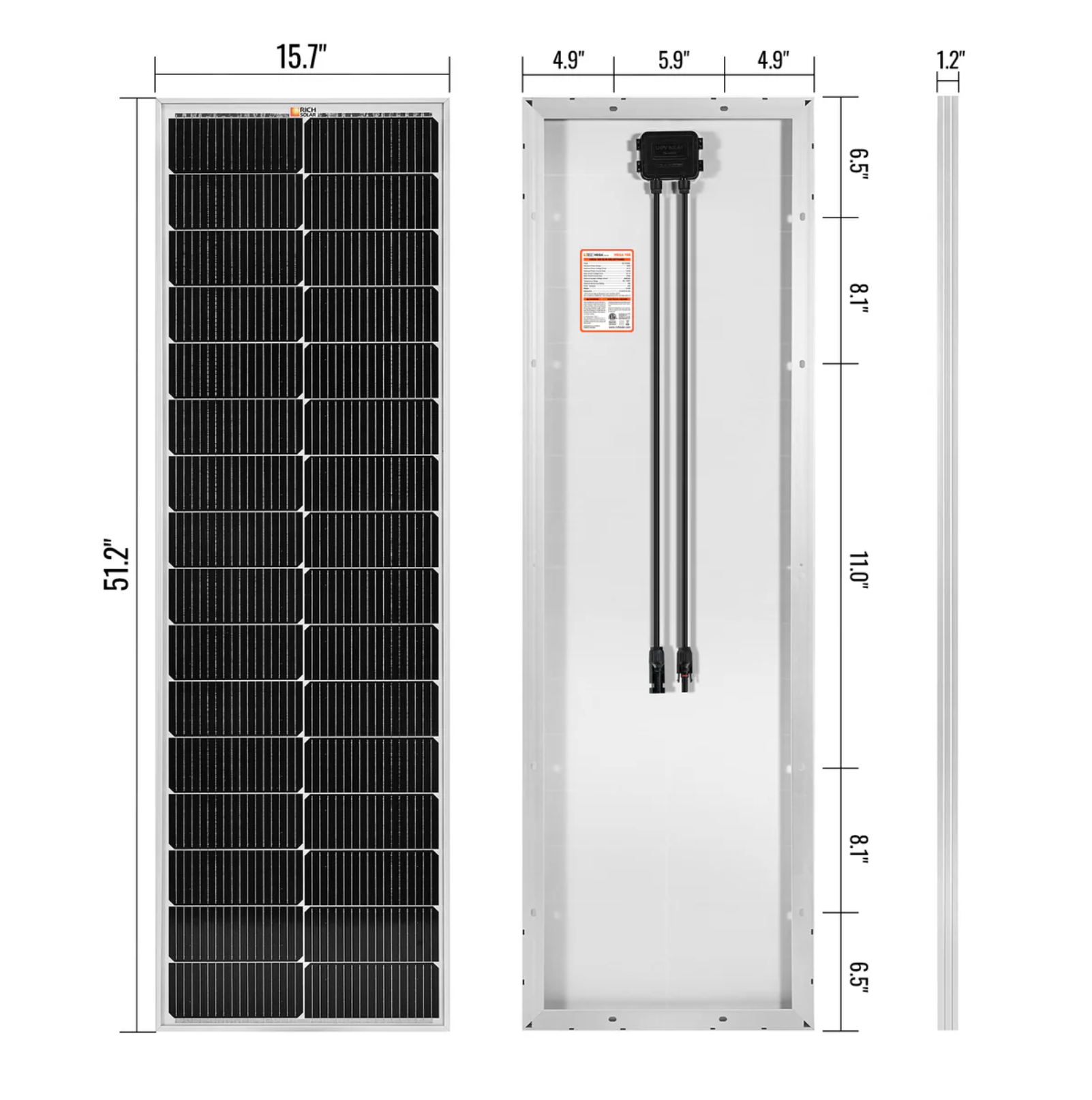

- Dimensions: 51.2 x 15.7 x 1.2 in
