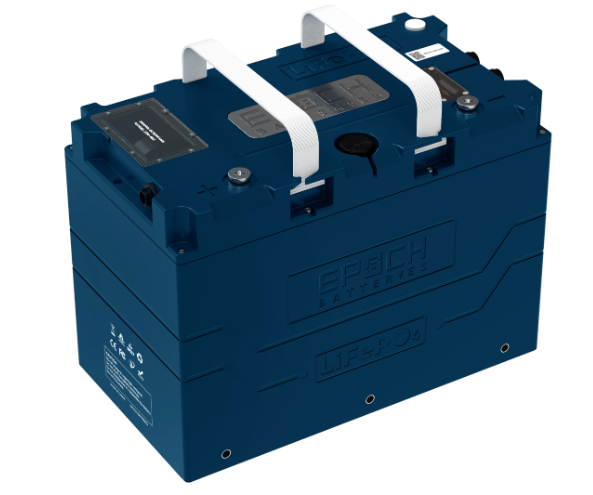

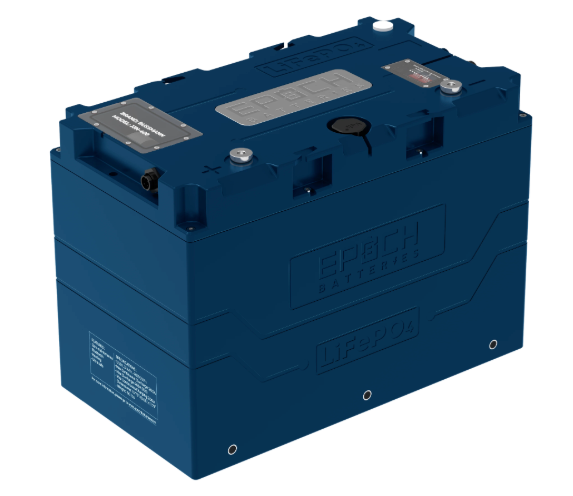

Introducing a new way to power your adventure. Epoch's 12V 314Ah battery brings new innovation and technology that you will love for your van's electrical system! The battery is is IP67 rated, internally heated, and equipped with charging protections just to name a few features.
Have or want Victron Energy components for your electrical system, you can still choose the Epoch battery. They are equipped to communicate/ run parallel with up to 16 Victron components in one system (which is plenty!)
Details:
- LiFePO4 Chemistry
- 314Ah Capacity
- 400A EATON T-Class fuse (User Serviceable)
- 200A Max Continuous Discharge (400A 10s Discharge)
- 200A Max Continuous Charge
- IP67 Rated, Dust and WATERPROOF
- HEATED - Internal heating for below 0C charging
- BLUETOOTH - iOS and Android Apps
- VICTRON Communications - Parallel up to 16 together on 1 system
- External Power Button & Battery Gauge INCLUDED
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- UL60691 Certified Internal Fuse
- UL1642, U9540A, IEC 62619:2022 Certified Cells
- UL1973 Certified Pack
- 8000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
Specifications:
- Configurations:
- Cell Configuration: 4S1P
- Chemistry: LiFePO4
- Current:
- Ah Capacity: 314Ah
- Max Continuous Current Amps: 200A
- Max Charge Current Amps: 200A
- Max Discharge Peak Current Amps: 400A (10 Seconds)
- Series | Parallel: Max (4) in Series OR (16) in Parallel - 4S1P or 1S16P
- Voltage:
- Voltage: 12.8V
- Max Charge Voltage: 14.6V
- Operating Voltage Range: 10.0 - 14.6V
- Temperature:
- Charge Temp Range: 30°C (22°F) / 55°C (131°F) - with self-heating
- Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)
- Storage Temp: 0°C (32°F) / 35°C (95°F)
Recommended Charge Settings:
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
Bulk/Absorption: 14.2V – 14.6V
Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
Float: 13.4V – 13.8V
Equalization: 14.4V/ Disabled
Temperature Compensation: 0/Disabled
Charge Rate: 50% of the battery or battery bank capacity
Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
Cell Discharge Temperature: -4°F (-20°C) to 140°F (60°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
