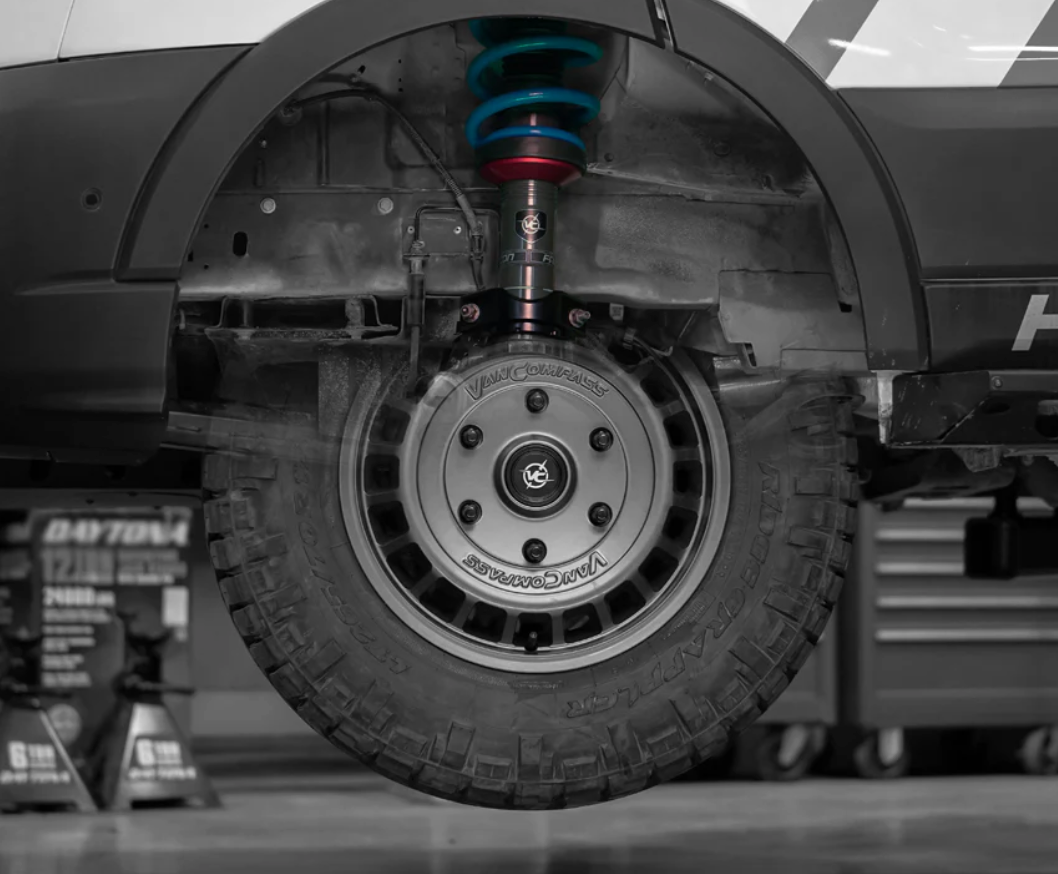

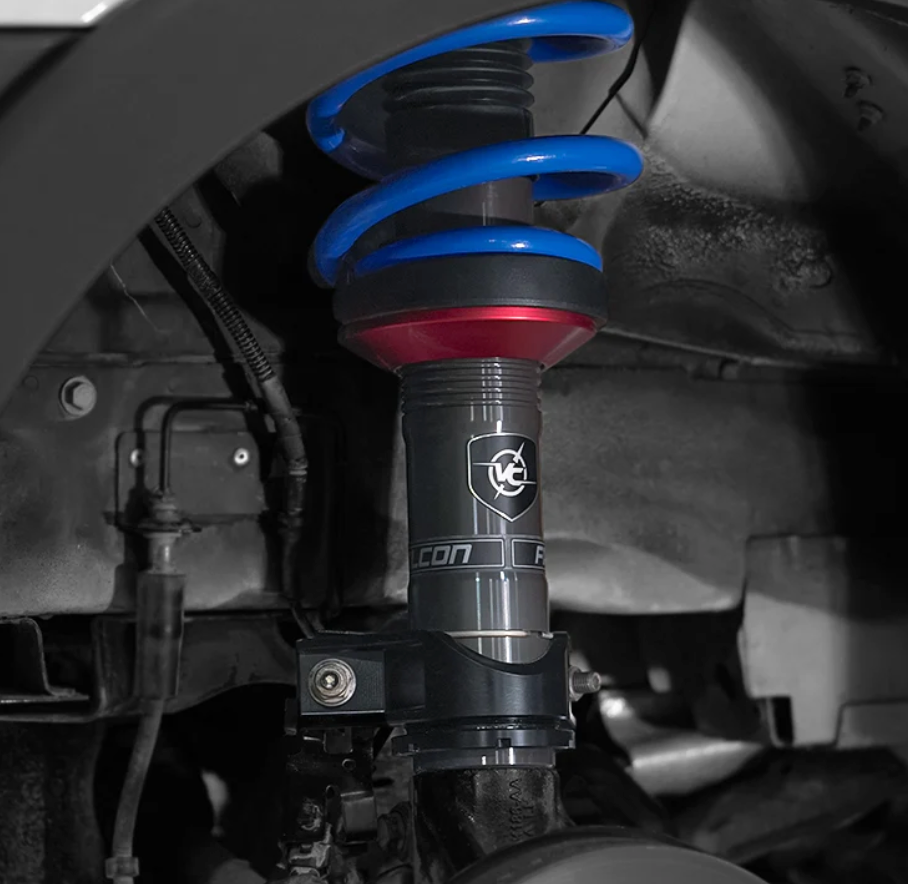

The wait is finally over, behold the new Inverted Monotube Rally Strut for the Ford Transit, jointly developed over the last 3 years by Van Compass and Falcon. This innovative damper brings the same game-changing performance to the Transit platform we brought to the Sprinter market!
Based on the same proven inverted architecture used in the Sprinter, these inverted struts offer a huge increase in load-bearing surface area over an OE strut. The larger damping piston and monotube design allows for a huge improvement in the ability to dissipate big hits, control top out, and keep on road sway in check.
Designed specifically to AWD size specifics, there is no need to worry about added stress on CV boots. Engineered to work with the Van Compass Topo lift kit, or on stock vans, the adjustable preload grooves allow the installer to fine tune installed ride height. New sway bar links are included. Struts are sold as a matched pair.

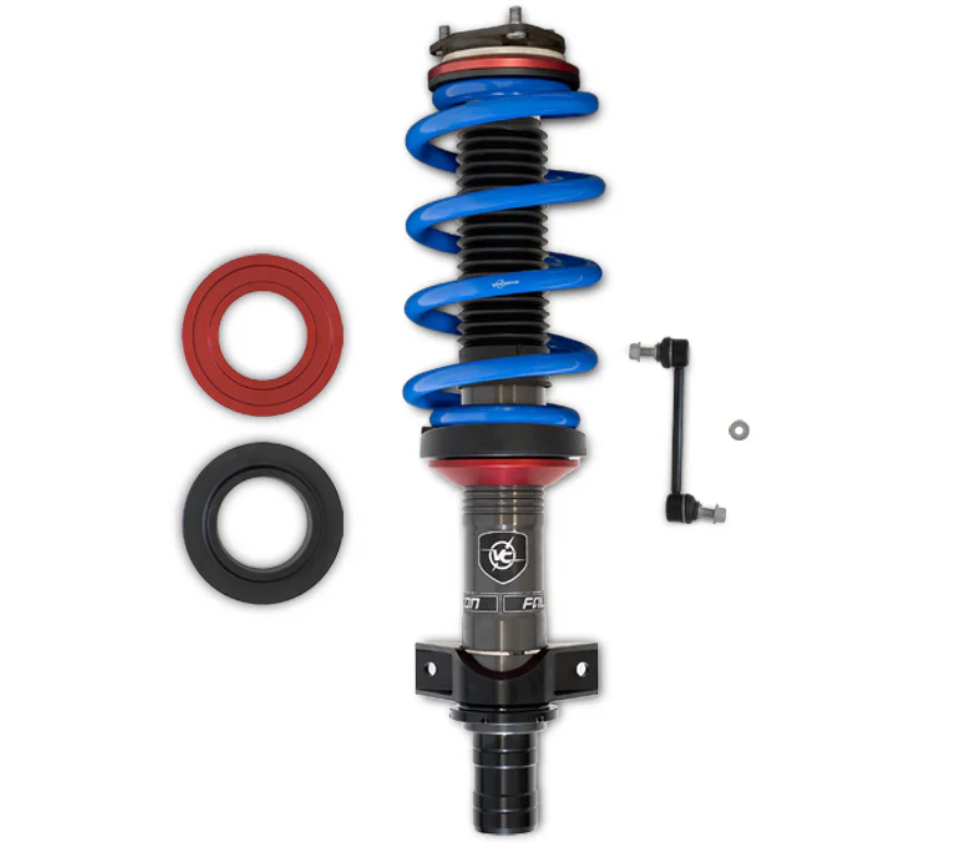

Included Components:
- Inverted Monotube Rally Struts (Pair)
- Sway Bar Links (Pair)
- Coil Spring Mounting Hardware (Spring sold separately)
- Upper Strut Mount not included, re-use factory
MODEL: TRANSIT
YEAR: 2015-PRESENT
DRIVE TYPE: AWD and 2WD
NOTE: Upper strut mount not included, re-use OE part. Recommend using Motorcraft AD1110 if replacing worn strut mounts.
NOTE: Coil springs NOT included.
Click Here For Transit Inverted Monotube Rally Struts installation instructions
Recommended Shop Labor Time: 5 Hours
