Stage 1 System Benefits:
- VC tuned Falcon 2.1 Monotube shocks, front and rear
- Enhanced cornering stability and reduced wind sway
- More effective control over large and small bumps off road
- Improved handling feel on rough roads and broken pavement
- Increased bottom out resistance
Intended Use:
- Lightly built out adventure vans
- Light Class B RV's
- Passenger vans seeking a handling upgrade
The Stage 1 system is the core the rest of our complete systems build up from. This perfect starting point includes a tuned 4 corner shock upgrade and front bump stop upgrade to tighten up your Sprinter's loose handling. Vehicle control and suspension compliance are the two areas of ride quality we focused on when we engineered this kit, and the payoff is increased performance over any terrain while also improving handling for unexpected emergencies.

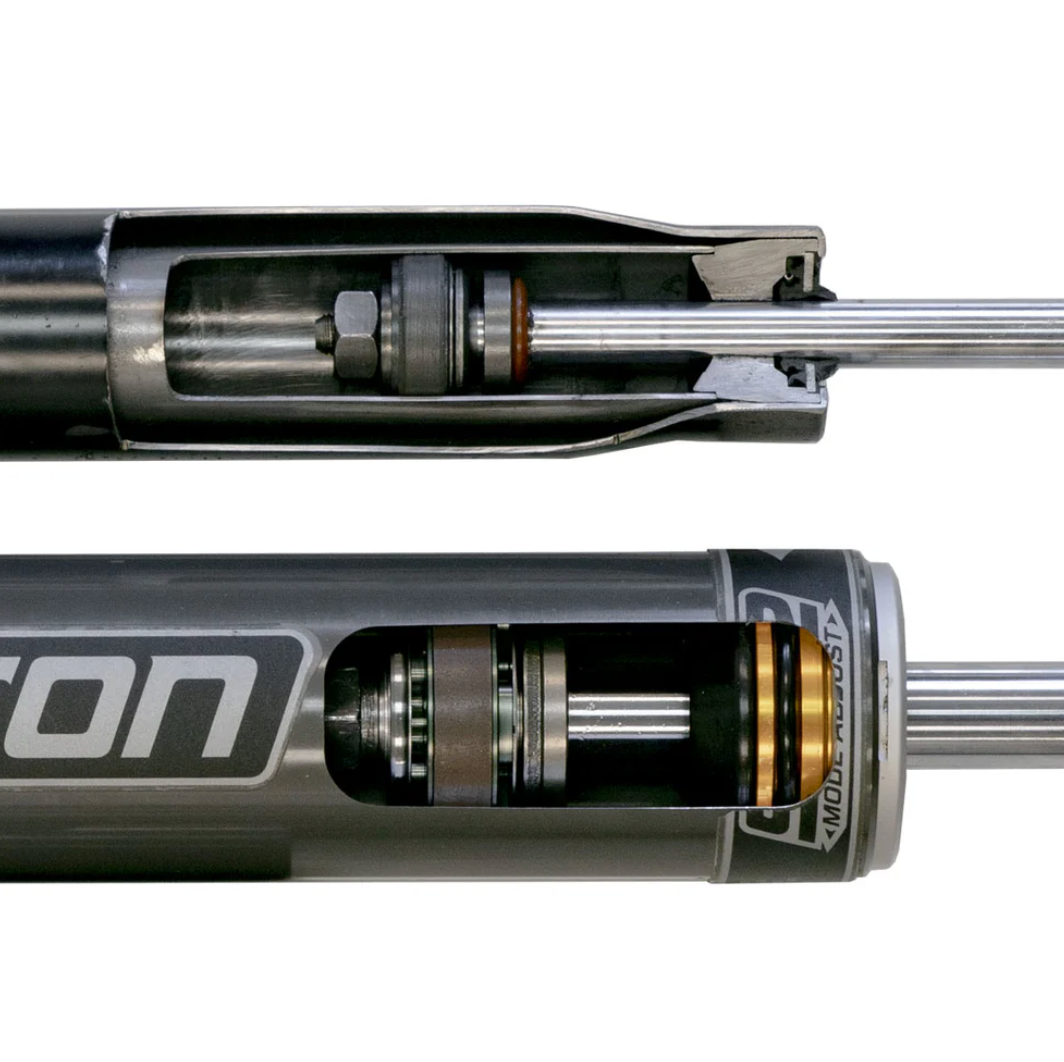

Falcon 2.1 Monotube Shocks, expertly tuned for van users, dramatically improve handling. With superior construction and a larger, more effective damper piston, these shocks will completely change the driving dynamics of your van. A more effective damper reduces leaning in corners, violent swaying, and smooths out jarring impacts. This in turn increases comfort and safety factor, while reducing driver fatigue.
Our progressive foam Bump Buddy replacement jounce bumpers replace your hard factory rubber bump stops, adding improved spring curve progression, reducing sway, and increasing bottom out resistance without any unnecessary clunking or harshness.

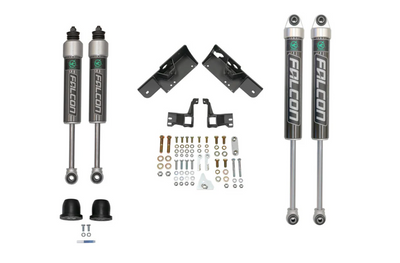

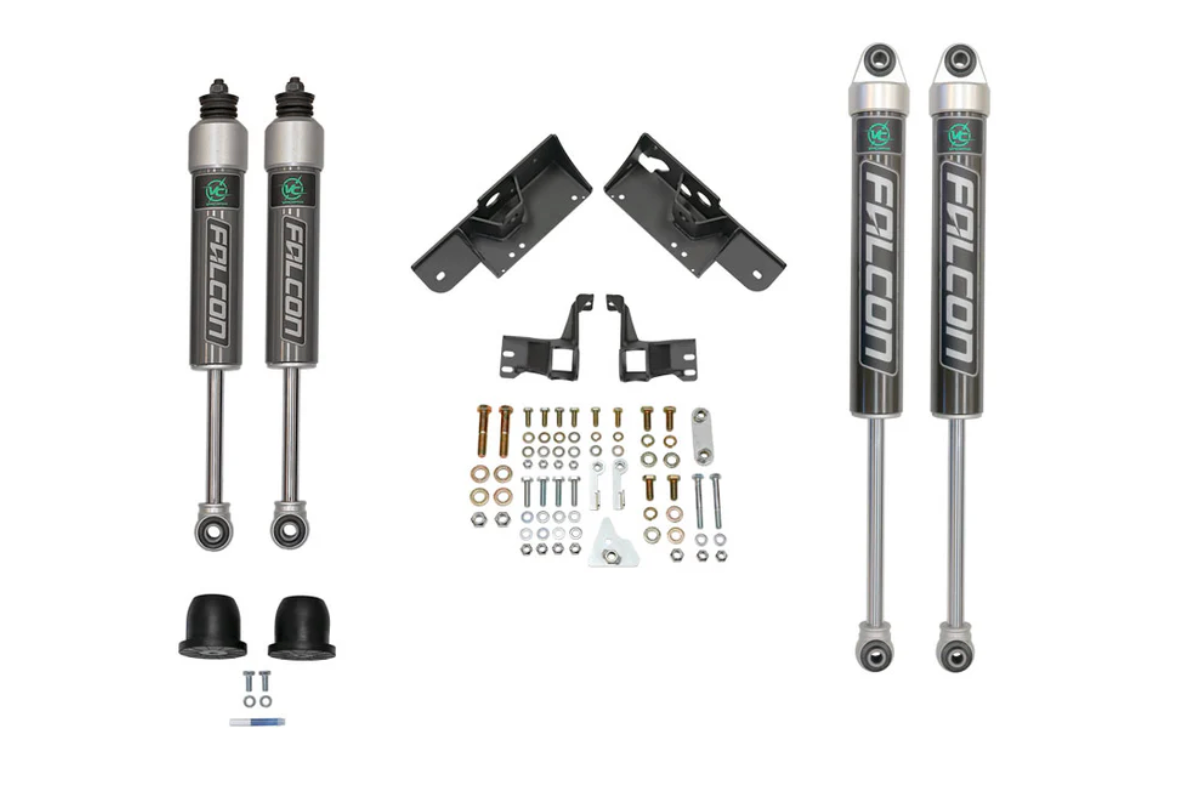

Included Components:
- Falcon 2.1 Monotube Front Shocks with Mounting Brackets
- Front Bump Buddies
- Falcon 2.1 Monotube Rear Shocks
- Dust boots for all 4 shocks.
- All necessary hardware and instructions for a simple installation
Fitment Guide:
MODEL: SPRINTER 2500
YEAR: 2019-PRESENT
DRIVE TYPE: 4X4 and AWD
>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<
>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<
Recommended Wheel Size: 17" x 8.5", +45mm offset
NOTE: Wheels with 6.5" backspacing, or +52mm offset on an 8" wheel, require a minimum 14 mm wheel spacer to prevent tire contact with auxiliary shocks at full steering angle. EX: Black Rhino Warlord, Method 701
NOTE: Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
NOTE: NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.
Instructions:
- 2015+ VS30 4x4 Falcon Front Shock Installation Instructions:
- NCV3, VS30 4x4 Falcon 2.1 Rear Shock Installation Instructions:
Sprinter AWD and 4x4 Front Bump Buddies installation instructions:
