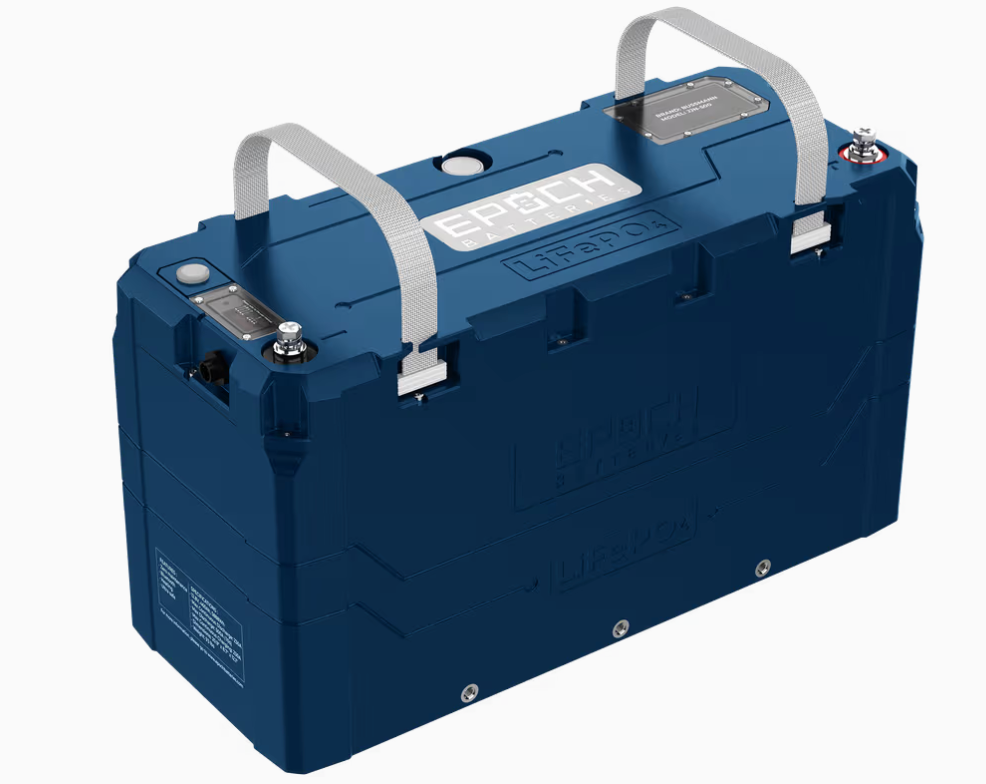

Introducing a new way to power your adventure. Epoch's 12V 460Ah battery brings new innovation and technology that you will love for your van's electrical system! The battery is is IP67 rated, internally heated, and equipped with charging protections just to name a few features.
Have or want Victron Energy components for your electrical system, you can still choose the Epoch battery. They are equipped to communicate/ run parallel with up to 16 Victron components in one system (which is plenty!)
The Details:
- LiFePO4 Chemistry
- 460Ah Capacity

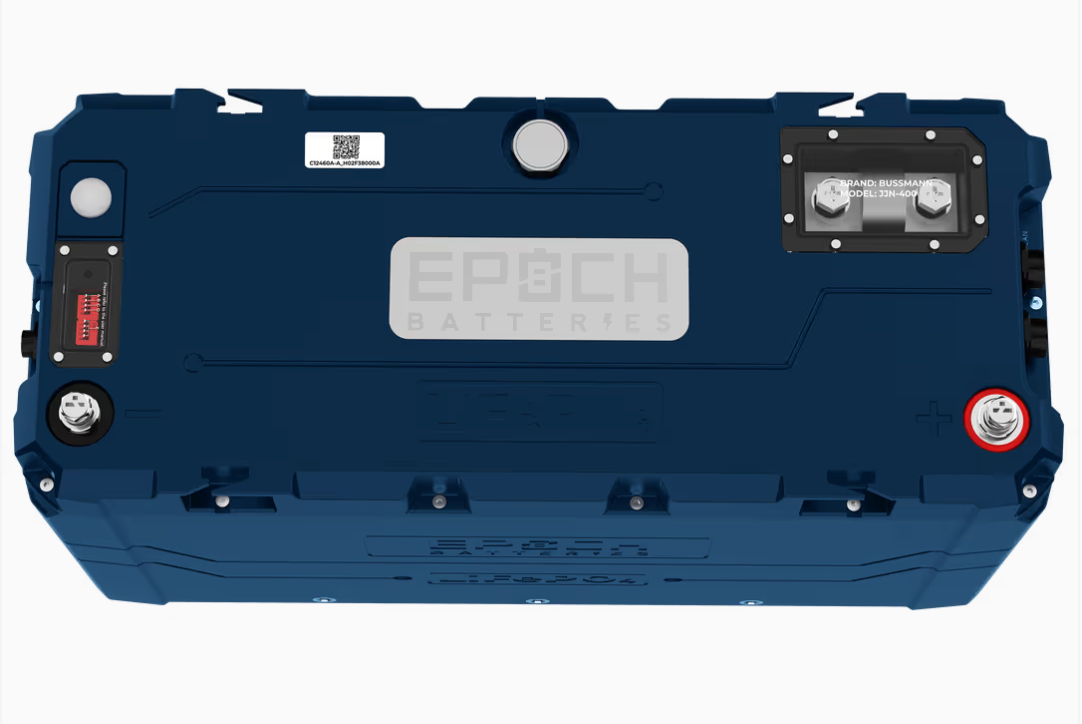

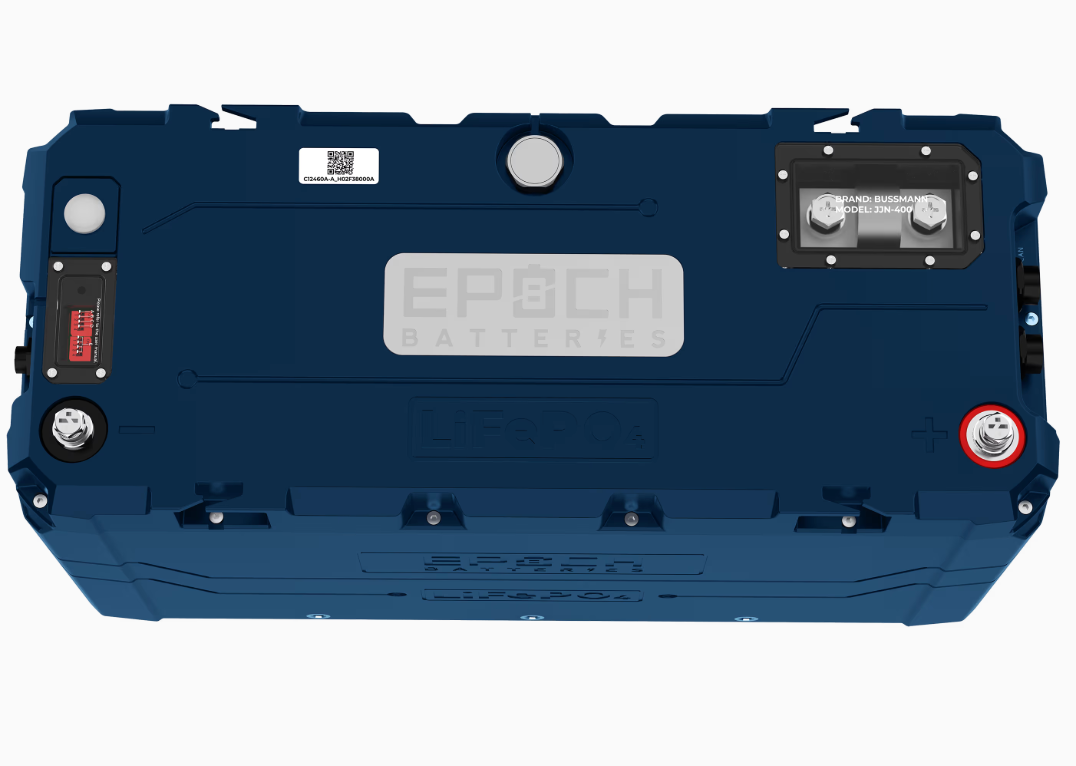

- 400A EATON Class T Fuse (User Serviceable)
- 230A @ 25°C Max CONTINUOUS Discharge (500A 30s Discharge)
- 210A @ 25°C Max CONTINUOUS Charge
- IP67 Rated, Dust and WATERPROOF
- HEATED - Internal heating for below 0C charging
- BLUETOOTH - iOS and Android Apps
- VICTRON Communications with distributed charge control via DVCC
- Parallel up to 16 batteries on 1 system

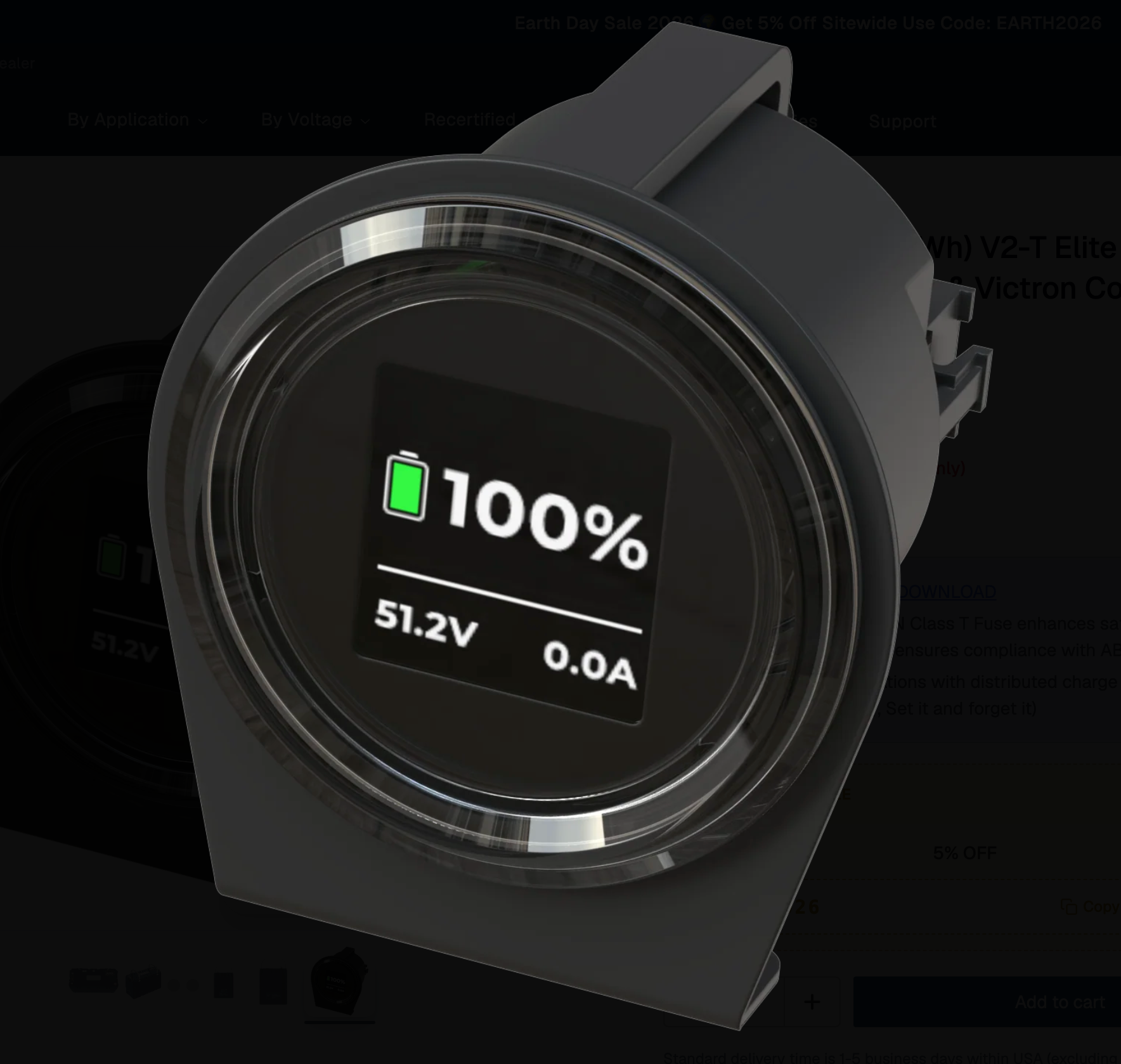

- External Power Button & Battery Gauge INCLUDED
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- UL60691 Certified Internal Fuse
- UL1642, U9540A, IEC 62619:2022 Certified Cells
- UL1973 Certified Pack
- 4000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
Specifications:
Configuration:
- Cell Configuration: 4S2P
- Chemistry: LiFePO4
Current:
- Ah Capacity: 460Ah
- Max Continuous Discharge Amps: 230A @ 25°C
- Max Charge Current Amps: 210A @ 25°C
- Max Discharge Peak Current Amps: 500A (30 Seconds) , 1300A (1 Second)
- Series | Parallel: Max (4) in Series OR Max (16) in Parallel - 4S1P or 1S16P
Voltage:
- Voltage: 12.8V
- Max Charge Voltage: 14.6V
- Operating Voltage Range: 10.0 - 14.6V
Temperature:
- Charge Temp Range: -30°C (-22°F) / 55°C (131°F) (with self-heating)
- Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)
- Storage Temp: 0°C (32°F) / 35°C (95°F)
Recommended Charge Settings:
Batteries employed in non-Victron systems should utilize the following settings:
- Absorption voltage: 14.2V
- Absorption time of 15 minutes per battery
- Float voltage: 13.5V
- Equalization: Off
- No temperature compensation (Disabled)
To use the V2-T Elite with Victron systems.
Set up the battery comm harness and gauge as follows:
- Plug with waterproof bung plugged into master blue port.
- RJ45 cable out of master black port and into slave1 blue port.
- RJ45 cable out of slave1 black port and into slave blue port and so on to daisy chain up to 16 batteries in parallel.
- Set dip switches as per manual.
- Plug in grey RJ45 plug into the Cerbo or Ekrano GX BMS CAN port or if you have the new Cerbo Mk2 plug grey plug inot VE-CAN1 or VE-CAN 2 and change the VE can port speed to 500 KBPS LV.
- To confirm proper reporting, go to the GX/touch screen and confirm the Epoch battery shows up on the device list. Click on the battery line, go to Details. Check to see the number of modules online is equal to the number of batteries installed. Check that the number of AH is equal to the number of AH installed.
- In the GX device/touch screen turn on DVCC, set controlling BMS to Epoch, set battery monitor to Epoch.
- The system should say External Control on the GX touch screen Inverter tile when charging (but not while inverting). The system will automatically cycle to 14.2V with an absorption time of a minimum of roughly 15 minutes per battery followed by 13.5V float voltage.
- It is recommended to manually program the Multiplus, Quattro and all other charge source to these same parameters in case of CAN communication loss.
