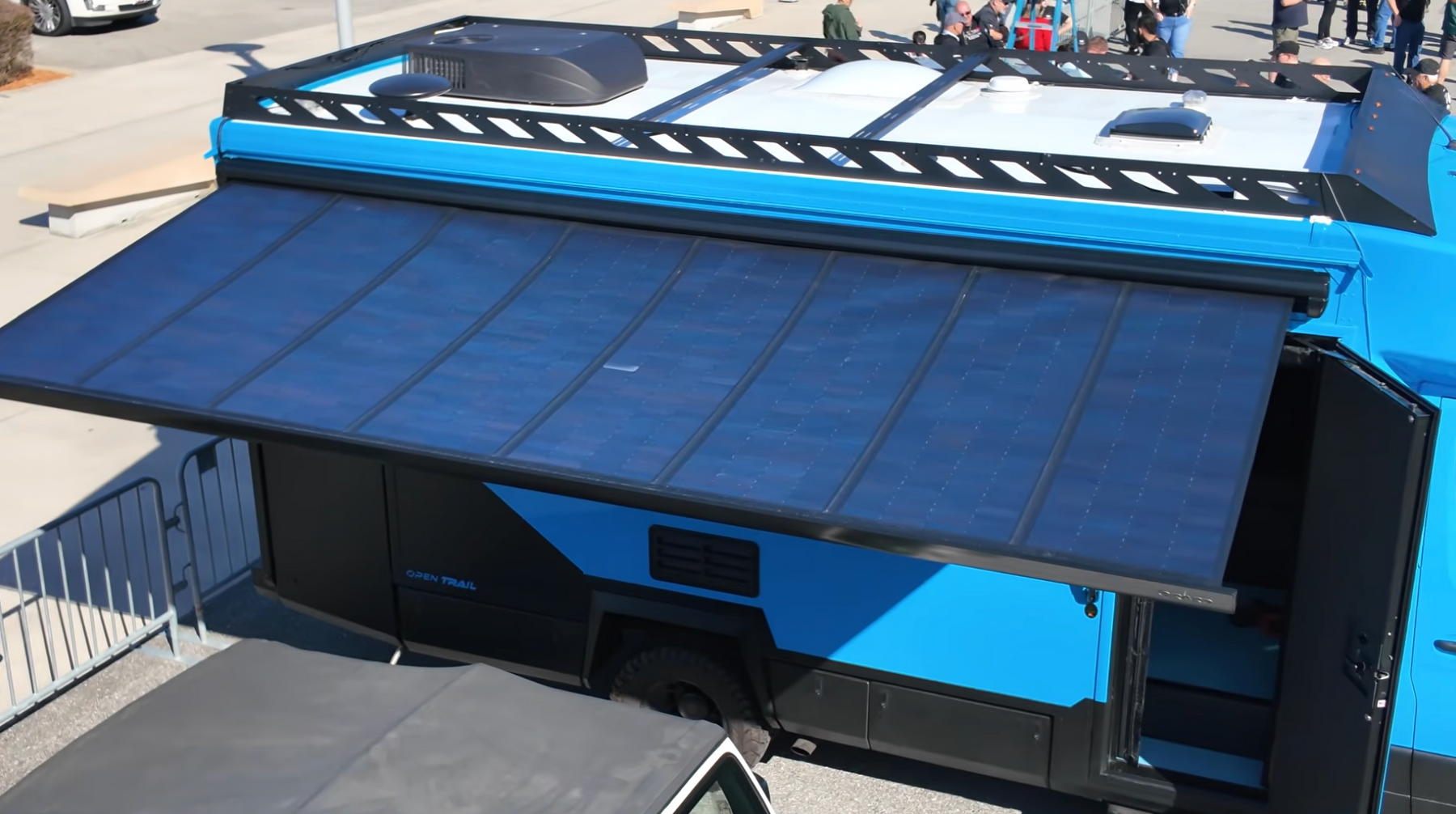

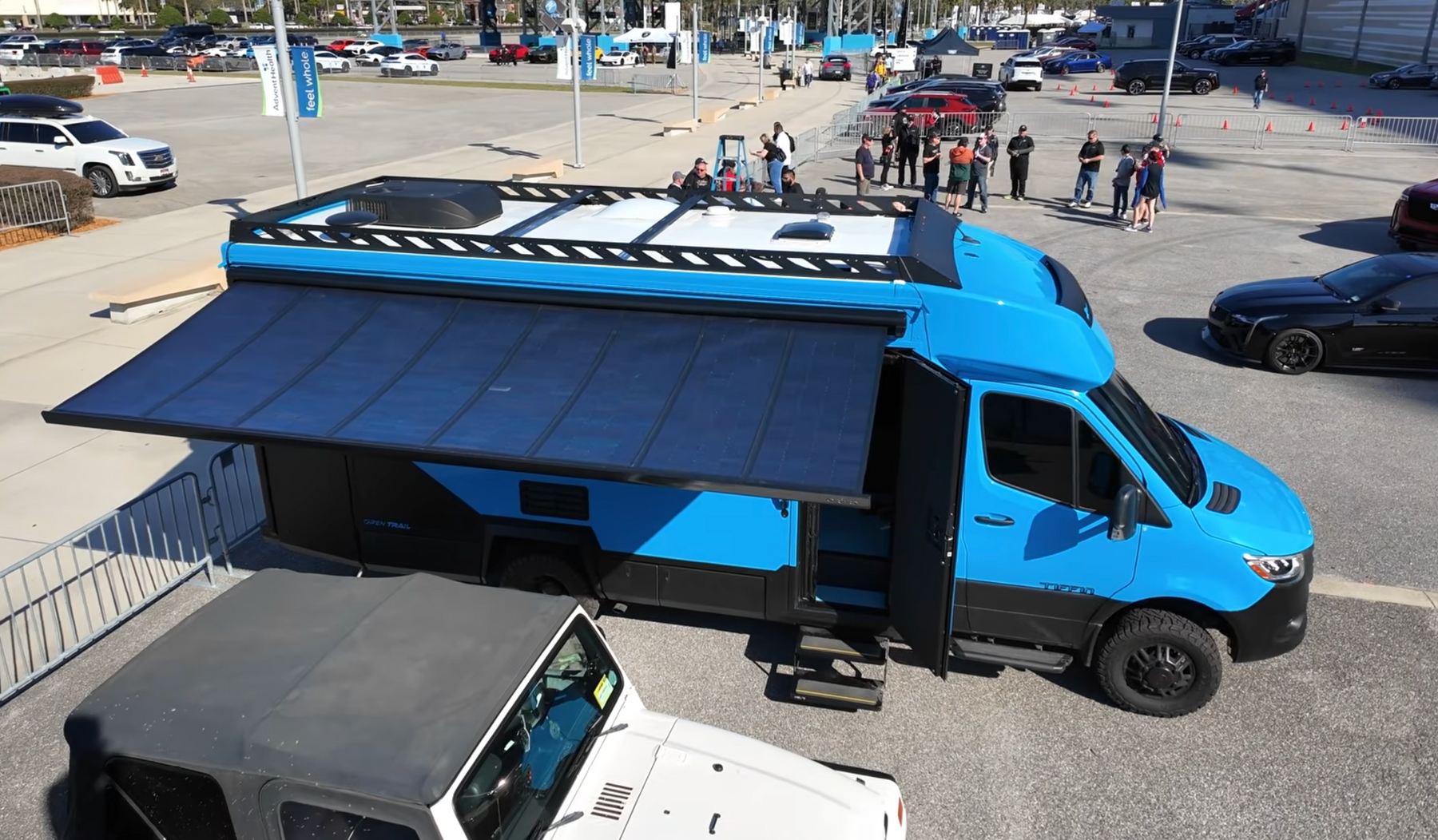

The Girard GG750 Solar Awning gives your a way to add meaningful solar generation! Whether you don't want to fill your roof to capacity with solar panels, or you've already run out of space but want even more power, the solar awning is a great way to provide your system with some extra charge.
Built on the black Girard GG750 cassette and paried with Apollo solar fabric, it combines shade and solar production in one legless 12V awning system! This is a great option for adventure vans, Class C rigs, larger RVs, and trailers alike.
This is a great option for folks who already have solar but want to up their capacity to avoid dependence on shore power, reduce generator use, all while keeping the roof top less congested. The GG750 gives you the independence of a new solar surface while also keeping your roof top free and clear.
IMPORTANT:
The solar awning is heavier than your tradition side awnings and requires ample mounting support. Verify structure, bracket compatibility, available mounting space, and installation method before ordering! Whether you are adding a new awning or replacing one, do your due diligence to ensure the solar awning will be secured to your rig. The Girard GG750 is made to order - no returns!
Technical Specs:
General Specs:
| Specification | Details |
| Awning Model | Girard GG750 |
| Fabric | Apollo Solar Fabric |
| Cassette Color | Black |
| Awning Type | Legless Cassette Awning |
| Projection | 77" |
| Motor Voltage | 12V |
| Motor Side | Right-Hand Standard |
| Left-Hand Motor | Available by request, please contact us |
| Output Cables | 10 AWG x2, 1m long |
| Mounting Brackets | Included |
| Included Switch | 202230461, 98GGC101 |
| Production Lead Time | 2-3 weeks before shipping |
| Shipping | Free freight included to lower 48 |
| Warranty | 2 year |
Size and Power Option Specs:
| Length | Power | Closed Dimensions | Weight | Electrical Specs. |
| 8' | 480W | 6.06 x 4.29 x 96 in | 76 lb | 39 Vmp, 12 lmp, 49.5 Voc, 14 lsc |
| 10' | 600W | 6.06 x 4.29 x 120 in | 93 lb | 39 Vmp, 15 lmo, 49.5 Voc, 17.5 lsc |
| 11'8" | 720W | 6.06 x 4.29 x 140 in | 104 lb | 39 Vmp, 18 lmp, 49.5 Voc, 21 lsc |
| 13'6" | 840W | 6.06 x 4.29 x 162 in | 113 lb | 39 Vmp, 21 lmp, 49.5 Voc, 24.5 lsc |
| 15'4" | 960W | 6.06 x 4.29 x 184 in | 137 lb | 39 Vmp, 12 lmp, 49.5 Voc, 14 lsc (x2) |
Recommended Victron Energy MPPT Controllers for 12V Battery Systems - Final charge controller sizing should be confirmed against complete system design, battery voltage, cable run, and solar integration.
| Awning Size | Power | Recommended Victron MPPT |
| 8' | 480W | SmartSolar MPPT 100/50 |
| 10' | 600W | SmartSolar MPPT 100/50 |
| 11'8" | 720W | SmartSolar MPPT 150/60 |
| 13'6" | 840W | SmartSolar MPPT 150/60 |
| 15'4" | 960W | SmartSolar MPPT 100/50 x2 |
Installation Notes:
This awning should be used as a source that feeds your existing power system, not a standalone power source. It MUST be integrated into a pre-existing power system through an appropriate solar charge controller such as the Victron Energy MPPT.
In many cases this solar awning can replace an existing awning, but please verify mounting capability, structural support, space, motor side, wiring path, and integration before ordering! This unit is much heavier than your standard awning - support requirements matter!!!
Check out the Installation Manual
Shipping:
The cost of shipping varies widely based on the length of awning and shipping address. Shipping can cost between $100-$1,300+. Please email us your shipping address for a quote.
